THE SMART WAY TO USE WOOD

Why KIELSTEG?

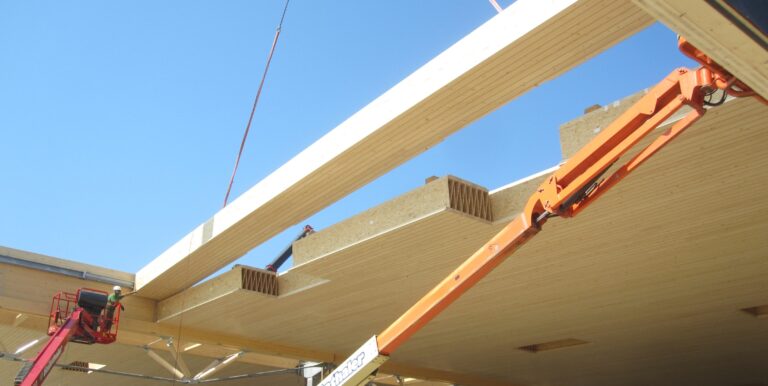

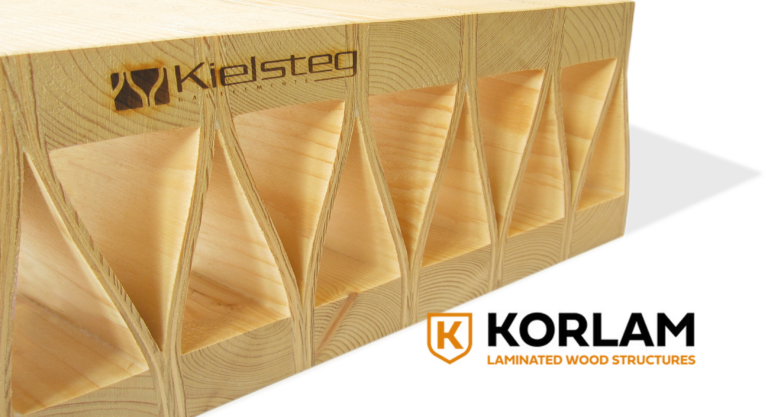

KIELSTEG is a series of lightweight, high-performance wooden construction elements used to form roofs and structural floors. Their strength comes from a unique cellular structure in which top and bottom layers of solid wood are linked by vertical webs of plywood or OSB. In cross-section, the webs form a characteristic curve in the form of a boat’s keel; hence the name KIELSTEG, meaning ‘keel-web’.

When you build with KIELSTEG, you can:

Maximize flexibility

KIELSTEG enables architects to design wide column-free spaces, ensuring maximum flexibility of use.

Save material

The ingenious arrangement of the wood in the KIELSTEG elements saves weight and ensures unbeatable structural performance.

Increase sustainability

sing the renewable material wood helps protect the climate and fulfil our responsibility to future generations.

STRONG, EFFICIENT, ECONOMICAL

Wide spans

Kielsteg can be used to create roof spans from 6 to 27 m and structural floors with spans of 3 to 13 m. Its load-bearing performance across these wide spans gives designers and users the freedom to do whatever they want with the space.

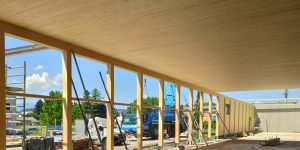

Kielsteg can be used to form cantilevered projecting roofs up to 10 m deep without any additional reinforcements or supports, creating aesthetically and technically clean and simple solutions.

Kielsteg elements are produced both in a flat version and in a version cambered along their length. The cambered versions extend the range of design load that can be carried within required deflection limits (serviceability).

RAPID, UNCOMPLICATED, EFFICIENT

Promoting efficiency

Kielsteg roof and floor assemblies occupy less built height than many alternative systems. For any given total height of a building, this helps achieve the maximum free height in the interior.

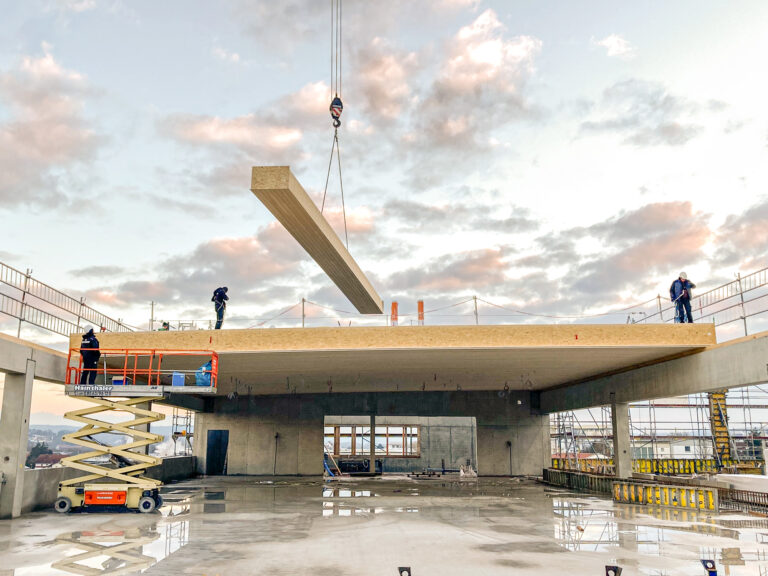

The factory production process with guaranteed parameters and standards ensures constant quality and enables detailed prefabrication for specific projects. In turn, the high level of prefabrication saves construction time on site.

Without any additional treatment, Kielsteg elements achieve a fire resistance of up to REI 60. The space inside the elements can be used to install pipes and wiring.

ECOLOGICAL, SUSTAINABLE, RESOURCE-EFFICIENT

Naturally sustainable

Kielsteg is PEFC-certified. The cellular structure of Kielsteg concentrates the wood exactly where it contributes to the structural performance. This means that Kielsteg contributes to sustainability both by using a renewable raw material (which sequesters CO2) and also by using it very efficiently.

The wide spans that can be achieved with Kielsteg reduce the number of internal supports needed in a building and because this makes the interior more adaptable, Kielsteg can help to make the service life of buildings longer. With their light weight, Kielsteg elements make it easier to add new structures on top of existing buildings and help reduce or eliminate the need to strengthen the substructure. In the same way they help to reduce the load on the foundations of new buildings.

Kielsteg roofs are suitable for use both as platforms for solar panels and also as green roofs.

DISTINCTIVE, PREMIUM, NATURAL

See the quality

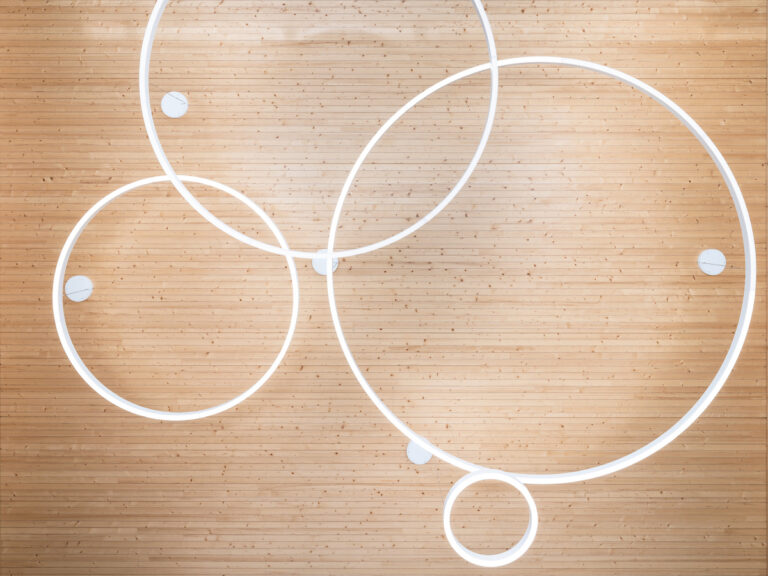

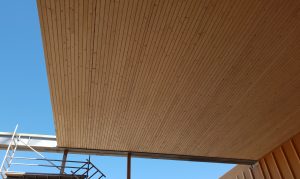

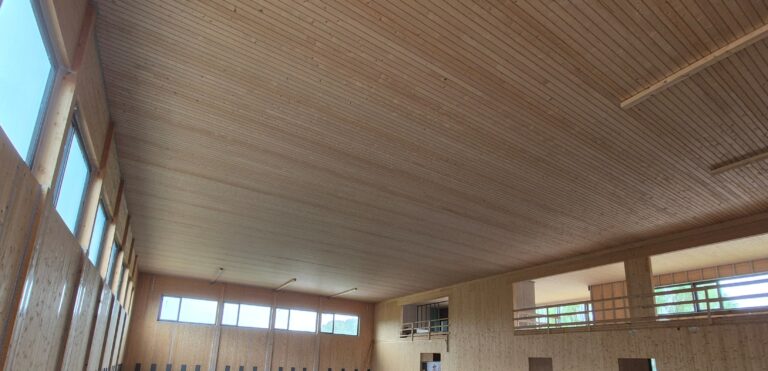

The natural, untreated surfaces of Kielsteg have a distinctive striped appearance that designers can use to add a touch of class.

Kielsteg surfaces also add to the look and feel of a space: you can use them to enhance subjective thermal comfort, colour mood and acoustic quality.

No extra cladding of the elements is needed either for aesthetic reasons or for fire resistance. As an unbroken wooden surface, a Kielsteg ceiling can also be used to attach utilities and fittings.

Production

Just-in-time manufacturing

The Kielsteg construction elements are manufactured in Austria by Kulmer Holz-Leimbau GmbH. Kulmer have more than 30 years’ experience in wooden building and have a well-deserved reputation as a pioneer with innovative laminated wood products, which they make in their 14.500-m² factory.

The production line is highly flexible and manufactures all the Kielsteg elements, in heights from 280 to 800 mm and in lengths of up to 35 m, either flat or cambered along their length. All production steps (sorting, finger jointing, planing, glue application, assembly and pressing) are carried out in accordance with the high standards of the structural wood lamination industry and are monitored by the materials testing laboratory at the University of Stuttgart.

Previous slide
Next slide
NEWS

Keep up to date

Latest news, topics and projects

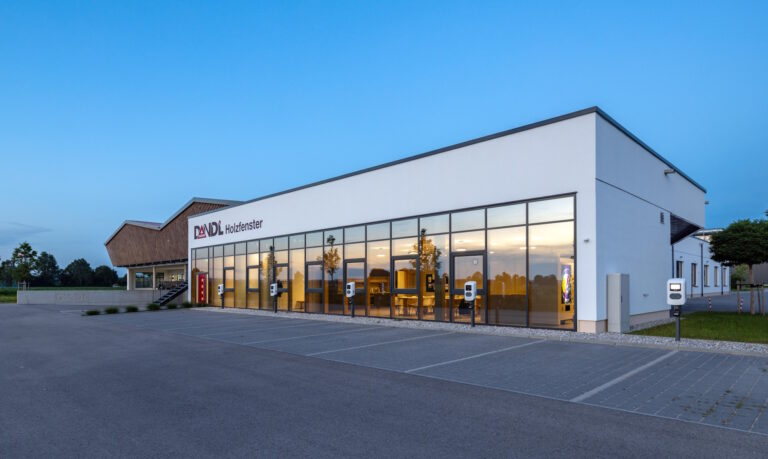

The new building of the Dandl carpentry in upper bavaria

Carpentry Dandl KG

The carpentry Dandl KG is one of the largest manufacturers of windows and doors in the Rupertiwinkel region of Upper Bavaria. Dandl combines proven traditional craftsmanship with state-of-the-art production technology. With the construction of a new administration and exhibition building,

the new building of iTD medical technology in germany

Medical technology iTD

Medical devices are among the fastest-growing industries in Germany. This is good business for iTD, a company from Lower Bavaria that makes mobile carts and articulated arms for carrying medical devices. And so the company has invested in a brand-new

Simose Art Museum Waterfront Kielsteg Villa

Shigeru Ban Simose Art Museum Waterfront KIELSTEG Villas

The Simose Art Museum in Otake Hiroshima is home to around 500 works of art in the personal collection of Yumiko Shimose, president of Marui Sangyo Corporation. The museum’s motto is “admire art, inside art”. Its buildings – exhibition spaces,

Project portfolio

Buildings

Browse a selection of the most interesting KIELSTEG projects in Europe from recent years. Every one of these projects is an example of how to use KIELSTEG to realise top-quality solutions to architectural, functional and environmental demands.

By choosing KIELSTEG, the owners, architects and engineers demonstrated their understanding of the values of contemporary buildings – using wood as a highly sustainable, but also high-performance construction material.

DISTRIBUTORS

Consulting and support throughout Europe

We have highly competent distribution partners in many European countries, who can give you good advice and service. Experienced engineers can answer your questions on structural design, building physics and fire protection. We will help you develop a building concept with the KIELSTEG system, and with the dimensioning of the KIELSTEG elements.

AUSTRIA
ZMP GmbH
BELGIUM
Laminated timber solutions
GERMANY
KIELSTEG Deutschland GmbH
ITALY
MAK Building GmbH
NORWAY
Wood by Control AS
SWITZERLAND
Holz Stürm AG
support

Tools for selection and pre-dimensioning of KIELSTEG construction elements

Guide to engineering design with KIELSTEG including load tables, in e-book format. The 20-page guide includes all the important information on design and engineering. For architects, designers and structural engineers, this documentation including load tables is a valuable help for initial selection of KIELSTEG elements.

Get the e-book here

Details

Whatever type of construction you choose – here we provide a practical overview with suggested construction methods and details.

System variants

Wooden framework support

Get the PDF here

CLT support

Get the PDF here

Glulam beam support

Get the PDF here

Steel frame support

Get the PDF here

Concrete/masonry support

Get the PDF here
Wallner-Mild dimensioning software

Do it yourself

The software from Wallner-Mild enables quick and easy pre-dimensioning of projects with KIELSTEG construction elements in the concept phase. All KIELSTEG roof and structural floor elements are integrated into this simple-to-use tool and can be selected according to individual requirements. The dimensioning software is available free of charge for Windows 10 and Excel 2010, or higher. Please send us a request via our contact form. We will then send you all the information you need.

Request

g

CONTACT

Write to us!

Do you have questions about KIELSTEG? Should we call you back? How can we help? Fill out the form to send us a message.

Service

Order our sample box!

The box contains a sample of a KIELSTEG element and our current project portfolio. On over 100 pages, it contains detailed descriptions of the most interesting buildings that have been made with KIELSTEG in recent years in Europe. Simply fill out the order form and we will send you the free sample box.

E-BOOKs

More than 140 pages of KIELSTEG projects

The current edition of our project portfolio presents many examples of successful KIELSTEG projects, illustrating the wide range of possible applications. Office and commercial buildings, factories and warehouses, supermarkets, R&D institutes, schools, kindergartens, restaurants, shops, and adding extra storeys to existing buildings all feature.

Get the e-book here

Portfolio “BAUWERKE BUILDINGS” More than 120 pages of KIELSTEG projects

Find examples of the application spectrum of KIELSTEG in our new Reference Book featuring: schools, kindergartens, sports halls, industrial and commercial buildings, adding storeys, and supermarkets.

Get the e-book here

Shigeru Ban and KIELSTEG: New e-book documents the extraordinary project

Pritzker Prize winner Shigeru Ban created the Waterfront Villas for the Simose Art Museum around KIELSTEG as the main construction material. Our new e-book documents this extraordinary project of the Japanese star architect.

Get the e-book here
WHAT PEOPLE SAY

Motivation and ambition

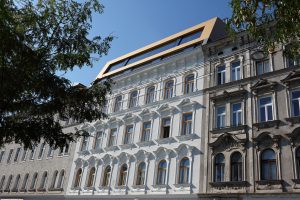

“Where space is at a premium and it’s hard to create any more living space, we create solutions for new multi-storey apartments on top of the existing building.”
Regina M. Lettner und Günter Laglerskywood by baukult
“This is probably the most advanced and environmentally friendly coffee roasting factories in the world.”
Ted AllergothMarketing Director Joh Johannson Coffee
“Apart from the foundation slab, the entire building can be completely dismantled, taken away on a truck and set up in a different location.”
Georg HerbstMalek Herbst Architects
“KIWI is the country’s biggest supermarket chain, so we have a responsibility for the way we build.”
Jan Eilif JohansenKIWI Store Development Manager
“Our building made of wood and glass has a strong vitalizing effect in the middle of the historic complex”.
Frederik VaesUAU Collectiv Architects
“Building this store helped us to develop our knowledge of sustainable building.”
MeinichMeinich and Søndergaard Rickfelt Architekten AS
Voriger
Nächster
Contact

Software Tool

Get the free Wallner-Mild software tool for pre-dimensioning the KIELSTEG elements.

APPROVALS AND CERTIFICATES

Innovation in wood

The European Technical Assessment regulates the manufacturing and use of KIELSTEG elements in the member states of the European Union as the basis for the CE certification mark.

Environmental Product Declarations (EPD) provide the data for environmental assessments. They enable meaningful comparisons of building materials for the first time. A cradle-to-grave EPD enables comparisons in systems or in whole buildings, over their whole life cycle.

PEFC, the Program for the Endorsement of Forest Certification Schemes, is a certification and labelling program for products derived from ecologically, economically and socially sustainable forestry – covering the entire processing chain. When customers buy products with the PEFC label, they can be sure that their purchase supports environmentally friendly forestry.
